When it comes to tall timber buildings, one of the most interesting engineering challenges is how light weight timber-framed construction can be incorporated into taller timber buildings.
Around the world, lightweight timber framing systems are being successfully applied in buildings reaching three to six storeys, offering builders significant advantages in speed, cost and sustainability. A common building practice is to incorporate a first-floor concrete transfer slab before the upper floors were constructed on site. The cost savings for the builder mean these solutions are accepted and commonplace.
While the concept of taller timber buildings may seem like a significant departure from traditional residential construction, the principles remain remarkably familiar. In many ways, constructing a multi-storey timber building is simply an extension of the techniques already used in standard timber-framed homes.
However, taller timber buildings present an interesting engineering challenge: they can be considered both too heavy and too light at the same time.
Compared to a typical house, a multi-storey timber building carries significantly more weight. Additional floors naturally increase the overall load, while acoustic treatments, fire protection systems and other performance requirements add further mass to the structure.
One solution is the use of engineered wood products such as LVL wall frames. These systems provide enhanced strength and consistency, making them well suited to taller structures.
Settlement is also a key consideration. As loads are transferred through multiple levels, small amounts of compression accumulate throughout the building

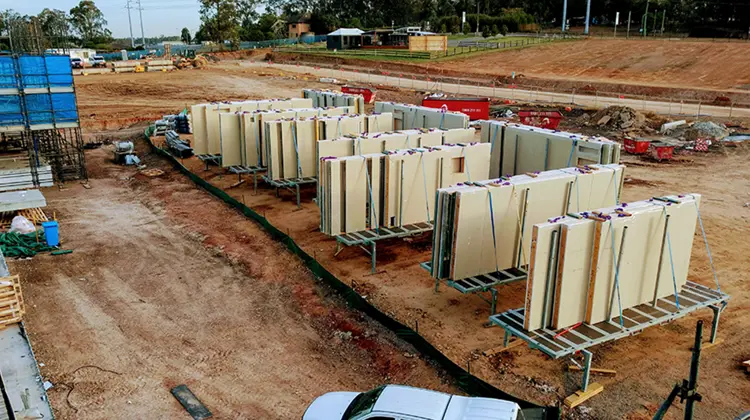

Off site manufactured and clad timber wall frames using LVL studs for Phoenix Apartments.

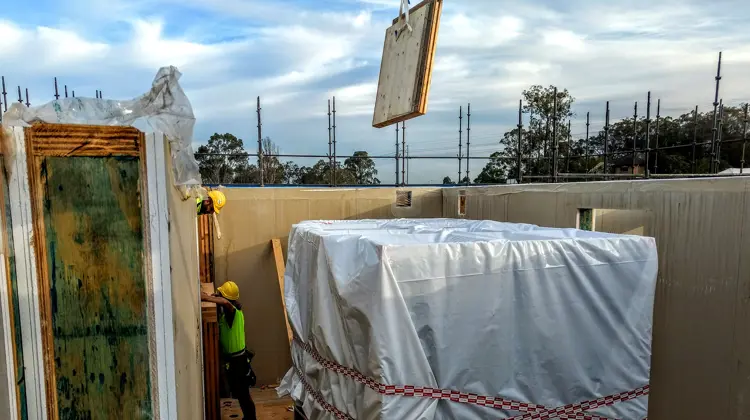

Off site manufactured and clad timber wall frames using LVL studs for Phoenix Apartments.

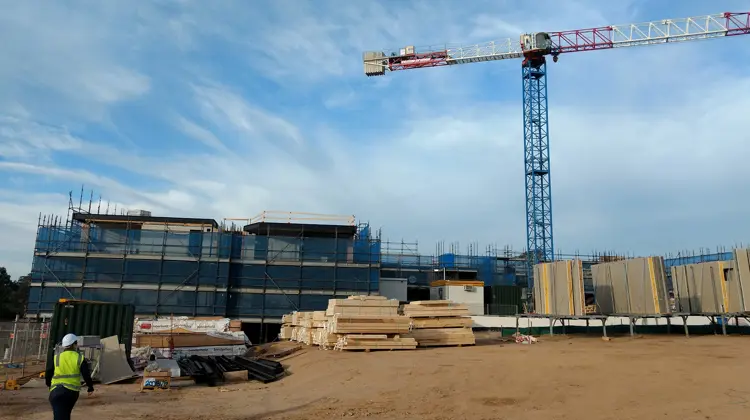

Off site manufactured and clad timber wall frames using LVL studs for Phoenix Apartments.

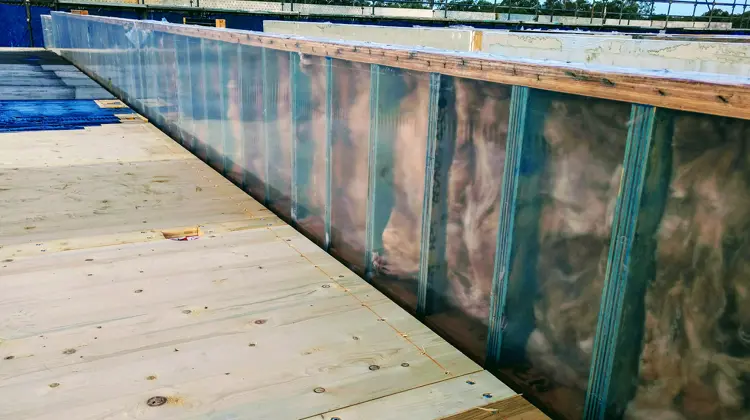

Off site manufactured and clad timber wall frames using LVL studs for Phoenix Apartments.
While a taller timber building may be heavy compared to a house, it is considerably lighter than an equivalent concrete or masonry structure.
This reduced weight offers several benefits, including lower foundation loads and potential cost savings in footing design. However, it also introduces another challenge: the building becomes more susceptible to wind forces.

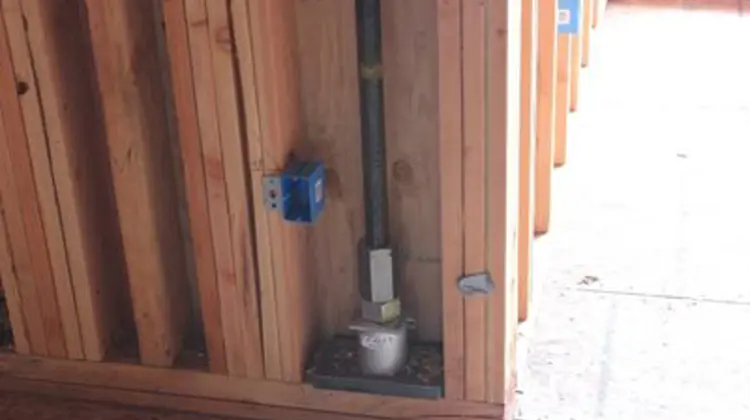

Because the structure is lighter, engineers must carefully consider overturning forces generated by wind. To resist these loads, tiedown systems (often referred to as overturning rods) are incorporated into the design.
Overturning rods perform an important role in keeping the building stable under wind loading, but they must also accommodate the gradual settlement of the structure over time. Modern rod systems often incorporate compensating devices that automatically adjust for building movement, ensuring the rods remain effective throughout the life of the structure.
For frame and truss manufacturers, supplying taller timber projects does not necessarily require a complete change in manufacturing processes. The greater challenge often lies in project delivery and production planning. Multi-storey developments require large volumes of wall and floor components across multiple levels, while typically involving only a single roof structure. This creates a different product mix and workflow compared to traditional residential construction.
As the construction industry continues to pursue more efficient and sustainable building methods, lightweight timber-framed multi-storey buildings are likely to become an increasingly common feature of the Australian built environment.
