e-splay

Angled Custom Members

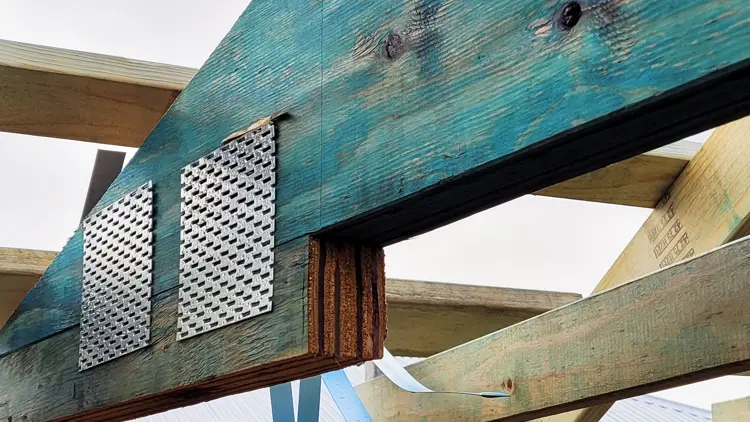

Wesbeam e-splay is a factory-manufactured splayed LVL beam designed for smarter roof beam solutions in stick roof construction. Made to fit between the wall plate and the underside of the rafter or roof cladding, it provides a practical engineered timber alternative to splayed steel universal beams.

Supplied ready cut from the factory, e-splay helps reduce on-site cutting, improve handling safety and support faster installation. Developed in collaboration with MiTek, it offers a cost-effective LVL solution where pre-cut engineered timber can improve roof framing efficiency and buildability.

Max Length: 6.6 m
Max Dim: 400 x 63 mm

Application:

  • Roofs
  • Floors
  • Walls
  • Formwork

Treatment:

  • Internal
  • External
Guides & Technical Data Product Overview
Max Length: 6.6 m
Max Dim: 400 x 63 mm

Application:

  • Roofs
  • Floors
  • Walls
  • Formwork

Treatment:

  • Internal
  • External
e-splay for smarter splayed roof beam solutions

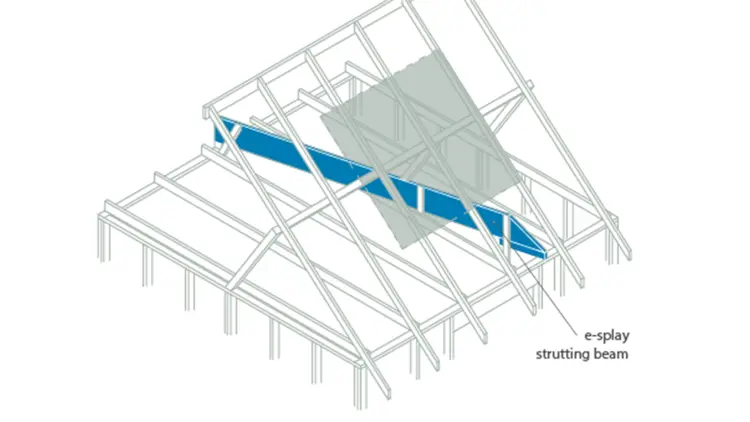

A factory-manufactured splayed LVL beam designed to fit between the wall plate and underside of the rafter or roof cladding.

e-splay is designed to simplify complex roof beam requirements by supplying the splay ready cut from the factory. This helps reduce on-site cutting, improve handling safety and provide a cost-effective LVL alternative to splayed steel beams.

Developed in collaboration with MiTek, e-splay supports stick roof construction where pre-cut engineered timber can improve site efficiency and buildability.

e-splay is available for supply in Western Australia only.

Where it is used

  • Splayed roof beams in stick roof construction

  • Applications where an LVL alternative to steel universal beams is suitable

  • Roof framing between wall plate and underside of rafter or roof cladding

Performance benefits

  • Factory accuracy: Supplied with the splay ready cut to reduce risky on-site cutting.

  • Buildability: Designed to fit practical roof framing conditions.

  • Handling: High strength while being lighter and easier to handle than many steel alternatives.

  • Sustainability: Manufactured from sustainably sourced timber.

PRODUCT DOCUMENTATION & SPECIFICATIONS

Guides & Resources

Browse our comprehensive library of installation guides, spans tables, and architectural software files to keep your build moving.

Built on Experience

Discover WA Roof Framing

Build With Greater Structural Confidence

Ready to build with Wesbeam e-splay?

Talk to the Wesbeam team about your e-splay needs.
Get in touch
Frequently Asked Questions

e-splay Frequently Asked Questions

e-splay is a factory-manufactured splayed LVL beam designed as an alternative to steel universal beams in stick roof construction.

Factory cutting helps reduce long and potentially dangerous splay cuts on site, improving safety and accuracy.

Suitability depends on design conditions and application. Confirm with the relevant Wesbeam documentation or technical support.
