e-beam

Structural Beams

Wesbeam e-beam is our flagship LVL product, engineered for strength, straightness and reliable performance across residential and commercial construction. Designed for beams, bearers, rafters, lintels, joists and general structural applications, it delivers the consistency and dimensional stability needed for efficient floor, roof and wall systems.

Max Length: 12.6 m
Max Dim: 400 x 75 mm

Application:

  • Roofs
  • Floors
  • Walls
  • Formwork

Treatment:

  • Internal
  • External
Guides & Technical Data Product Overview
Max Length: 12.6 m
Max Dim: 400 x 75 mm

Application:

  • Roofs
  • Floors
  • Walls
  • Formwork

Treatment:

  • Internal
  • External
e-beam LVL for confident structural performance

Sustainably sourced and Australian-made, e-beam delivers reliable LVL performance across every floor, roof and wall system.

e-beam is Wesbeam's premier LVL product, engineered for strength, straightness, dimensional stability and reliable performance in Australian construction conditions.

Manufactured in Western Australia from sustainably sourced timber, e-beam supports efficient design and practical installation across floor, roof and wall applications. It is commonly referenced in the industry as E13 or E13.2 due to its short-term average modulus of elasticity (MoE).

Where it is used

  • Floor beams and floor joists

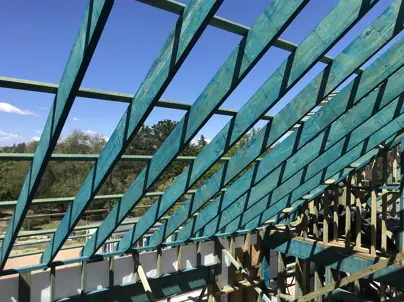

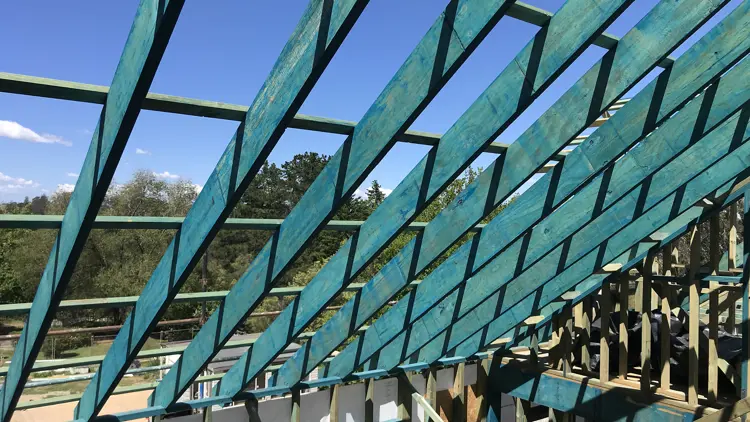

  • Rafters, roof beams, strutting beams and hanging beams

  • Ceiling joists, verandah beams and wind beams

  • Wall lintels and wall studs

  • Residential, multi-residential and selected commercial projects

Performance benefits

  • Strength: Engineered performance supports longer spans and reliable load-carrying capacity.

  • Stability: Manufactured for consistent properties, reducing variability compared with traditional sawn timber.

  • Ease of installation: High strength-to-weight performance can simplify handling and reduce reliance on heavier alternatives.

  • Technical confidence: Backed by Wesbeam design data, technical documents and engineering support.

Depths (mm)

Width (mm)

90

130

150

200

240

300

360

400

450

35

90 x 35

130 x 35

150 x 35

200 x 35

45

90 x 45

150 x 45

200 x 45

240 x 45

300 x 45

360 x 45

400 x 45

63

90 x 63

150 x 63

200 x 63

240 x 63

300 x 63

360 x 63

400 x 63

450 x 63

(SA only)

75

300 x 75

400 x 75

(WA & SA only)

Available Lengths up to 12.6m.*

*Maximum size and product availability varies by state

PRODUCT DOCUMENTATION & SPECIFICATIONS

Guides & Resources

Browse our comprehensive library of installation guides, spans tables, and architectural software files to keep your build moving.

Case Studies

Built on Experience

View all case studies
View all case studies
Build With Greater Structural Confidence

Ready to build with Wesbeam e-beam?

Talk to the Wesbeam team about your LVL beam needs.
Learn More
Frequently Asked Questions

e-beam Frequently Asked Questions

e-beam is used in floor, roof and wall applications where an engineered LVL beam, bearer, joist, rafter, lintel or framing member is required.

Yes. e-beam is manufactured by Wesbeam in Western Australia using sustainably sourced timber.

Selection depends on span, load, support conditions, application and treatment requirements. Use the relevant span table or contact Wesbeam technical support for project-specific guidance.

The maximum span of LVL depends on the loading conditions and application type, as well as the available length of the product. Wesbeam e-beams are available in lengths up to 12.6m and in a range of thicknesses, including 35mm, 45mm, and 63mm with depths from 90mm to 450mm. Maximum sizes vary by state, so please contact your local customer service team for further details.
